UNiTE-2

Two Input, Two Output USB 2.0 Audio Interface.

Get In

Two combo microphone/line inputs (with +48V phantom power support) and 1 switchable Hi-Z instrument input.

---

Get Out

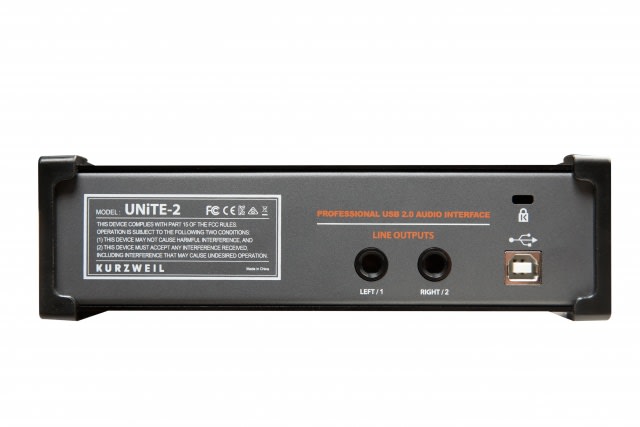

Individual L/R outputs via balanced 1/4" TRS connectors. Front panel headphone output with stereo 1/4" connector.

---

Make the Conversion

24-bit / 96kHz AD/DA converters.

---

USB

Bus-powered, full speed USB 2.0. No external power connection required.

---

Controls

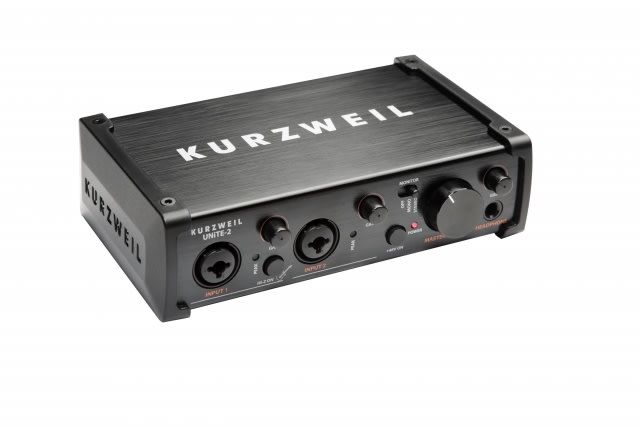

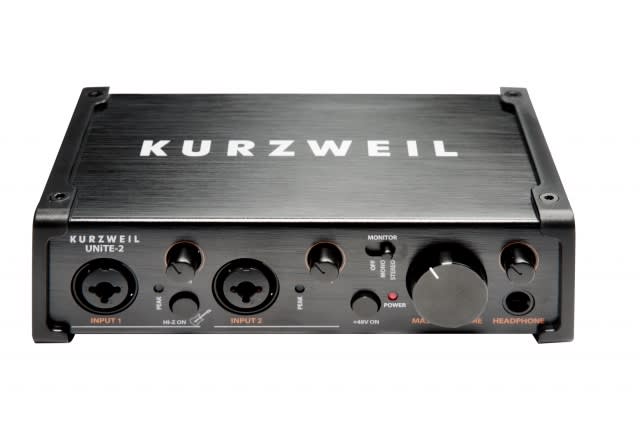

Intuitive and convenient front panel controls for channel input gain (with peak indicators), monitor, phantom power on/off, headphone and master volume.

---

---

Compatibility

Cross-platform compatibility for Windows (7, 8.1, 10 with ASIO 2.0, MMe, WDM and DirectSound), Mac OSX* (10.7 and above via the native CoreAudio USB Audio driver)  (*no driver install required)

---

Bitwig Studio-8 Included!

Bitwig Studio 8-Track is the sketch pad for your musical ideas.

UNiTE-2 Features & Specs

All specifications subject to change without notice.

Inputs:	2 combo XLR-1/4" microphone/line inputs 1 switchable Hi-Z instrument input
Outputs:	2 balanced 1/4” TRS 1 1/4" headphone output
Phantom Power (+48V):	Yes
USB:	2.0, bus powered
Front Panel Controls:	channel input gain, peak LED, phantom power, input monitoring, headphone and master volume
Compatibility:	-Windows 7, 8.1, 10 (ASIO 2.0, MMe, WDM, DirectSound) -Mac OS X 10.7 (and above) via CoreAudio (no driver install required)
A/D/A Conversion:	24bit / 96kHz (max)
ADC Dynamic Range:	102dBA@48kHz, SNR = 102dBA @48kHz
DAC Dynamic Range:	108dBA@48kHz, SNR = 108dBA @48kHz
