KS-50A

Compact, High Performance, Active 2-way Studio Monitors.

Compact Studio Monitors

Self-powered, magnetically shielded studio monitors with a small footprint, ideal for near-field applications.

---

Two-Way

Two-way system employing a 1" silk-dome tweeter and 5" kevlar-woven low-frequency driver.

---

Power Handling

The KS-50A features 60 watts of total power (30 W HF + 30W LF) and delivers 88dB SPL (+/- 3dB).

---

Reflex Port Design

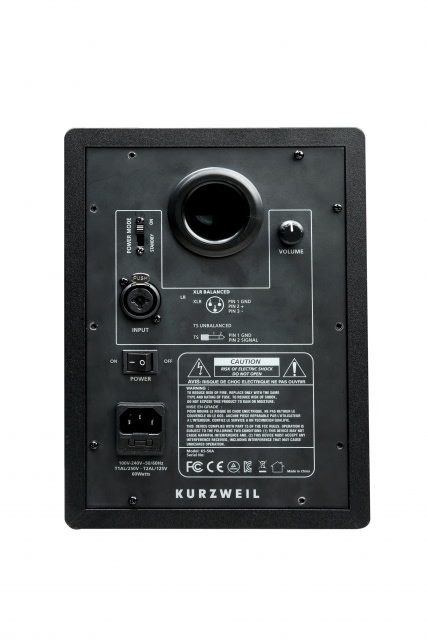

A rear panel bass reflex port helps extend the bass response down to 50 Hz.

---

Versatile Connections

The convenient combo connector provides balanced XLR or unbalanced 1/4" TS input.



KS-50A Features & Specs

All specifications subject to change without notice.

System Type:	Active 2-way
HF Driver:	1” silk dome tweeter
LF Driver:	5” kevlar curved cone (magnetically shielded)
Bass Reflex Port:	rear panel
Output Power:	60W (HF 30W, LF 30W), 85W AC consumption power
Frequency Response:	50 Hz - 20kHz
Input Impedance:	23.3 kOhm balanced, 13.3 kOhm unbalanced
Crossover Point:	2.5kHz
SPL:	88dB+/- 3dB
Rated Noise Power:	30 Watt (THD=1%, 4ohm@1kHz)
Input Sensitivity:	75mV@1watt, 415mV@30Watt
Input Connectors:	XLR / TS 1/4” combo connector, balanced / unbalanced input
Volume Control:	rear panel
Indicator:	blue power LED on front panel
Dimensions:	250mm (H)x 176mm(W) x 200mm (D)
Weight:	9.9 lb / 4.5kg
Working Voltage:	AC100-240V 50/60HZ, with 115V / 230V AC selection switch
